PG T Push To Connect Fittings Tee Union Air Line Pneumatic Quick Connector

The PG T Push-To-Connect Fittings Tee Union Air Line Pneumatic Quick Connector is a versatile and durable solution designed to efficiently manage multiple pneumatic connections. Engineered for reliability and ease of use, this connector offers a secure and leak-proof fit, making it an essential component in various pneumatic systems.

Key Features and Benefits

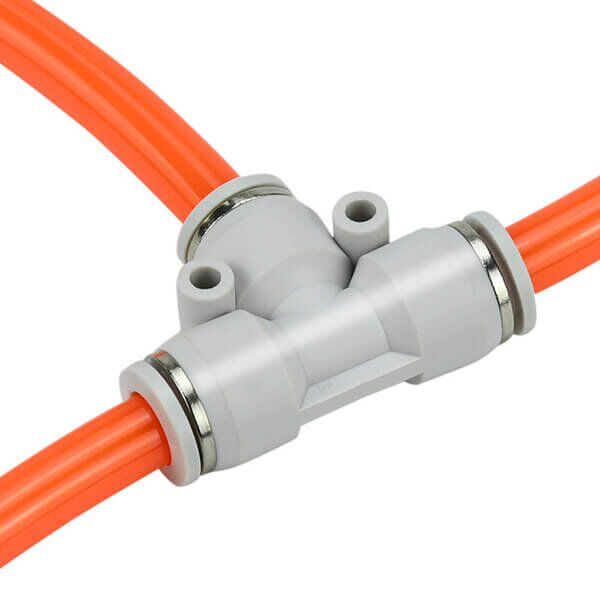

1. Multiple Connection Capabilities: The T-shaped design of this connector allows for the creation of branch lines, enabling the connection of three tubes simultaneously. This feature provides flexibility in controlling the disconnection or connection of multiple pipes, enhancing the efficiency of your pneumatic system.
2. Durable Construction: Crafted from high-quality materials, including a strong PBT housing, POM release button, and zinc alloy ferrule, this fitting is built to withstand high pressure (up to 145 psi) and resist corrosion, ensuring a long service life even in demanding environments.
3. 360-Degree Rotation for Flexibility: After installation, the connector allows for 360-degree rotation, making it easy to adjust the tube direction as needed. This flexibility is particularly useful in tight spaces where precise alignment is required.
4. Easy Installation and Disassembly: The push-lock mechanism simplifies the installation process—just a single touch is needed to connect the tube securely. The elliptical design of the release ring facilitates quick and tool-free disassembly, making maintenance straightforward and efficient.
5. Wide Range of Applications: Suitable for a variety of pneumatic systems, this connector can be used with PU, PA, PE, and PVC tubes. It is ideal for low-pressure hydraulic and pneumatic applications, including shop air systems, air compressors, automotive assembly, and more.
6. Reliable and Stable Performance: The connector’s robust design ensures that the tubes remain securely fixed, preventing accidental disconnection. Its efficient sealing performance effectively prevents gas or liquid leakage, contributing to the overall stability and reliability of the system.

The PG T Push-To-Connect Fittings Tee Union Air Line Pneumatic Quick Connector is a highly adaptable and dependable solution for managing multiple pneumatic connections. Its durable construction, easy installation, and 360-degree rotation capability make it an ideal choice for a wide range of industrial applications. Whether used in automotive, industrial, or other pneumatic systems, this connector offers a reliable and efficient means of ensuring stable and leak-proof connections.

Installation Method:

1. Prepare the Tubing: Ensure the tubing is cut vertically with a clean, smooth edge, free from scars or deformation. Avoid oval shapes for proper fitting.
2. Insert Fully: Push the tubing all the way to the bottom of the connector. Incomplete insertion may lead to air leakage.
3. Secure the Connection: After connecting, gently pull the tubing to confirm it is securely fastened and won’t slip out.
4. Remove with Care: To disconnect, press the connector clamp with your thumb while gently pulling out the pneumatic tube.
5. 360° Rotation: Once installed, the tubing can rotate 360° to allow for easy adjustment of the connector’s direction.
6. Maintenance: After multiple disconnections, trim any frayed tubing ends before reconnecting to maintain a secure and reliable connection.

By following these steps, you ensure a secure, leak-free connection with the PG T Push-To-Connect Fittings. These fittings offer a convenient and flexible solution for various pneumatic applications, allowing easy installation, adjustment, and maintenance while maintaining excellent performance and durability.
