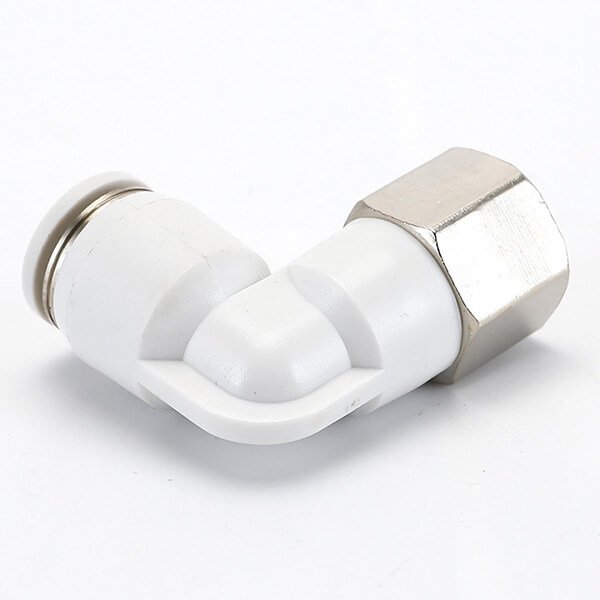

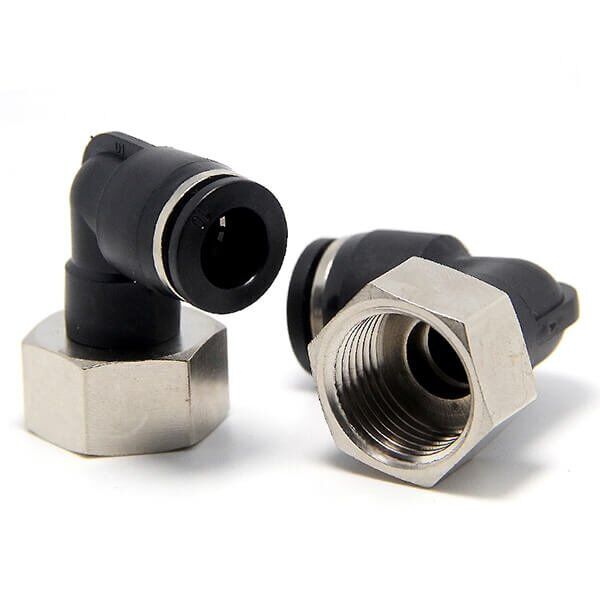

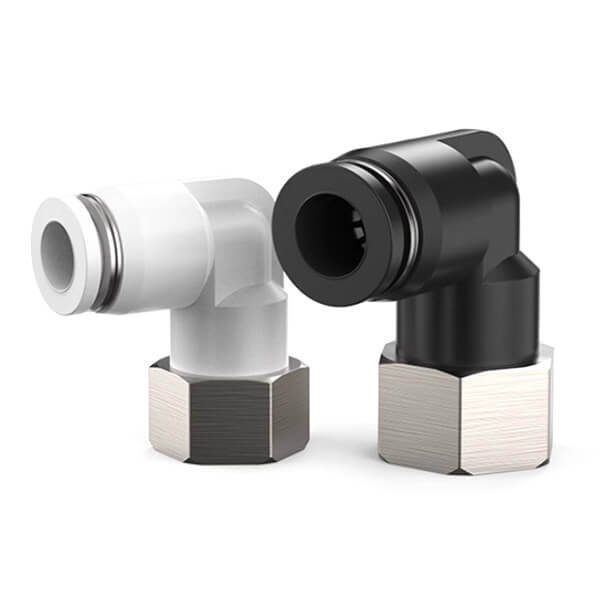

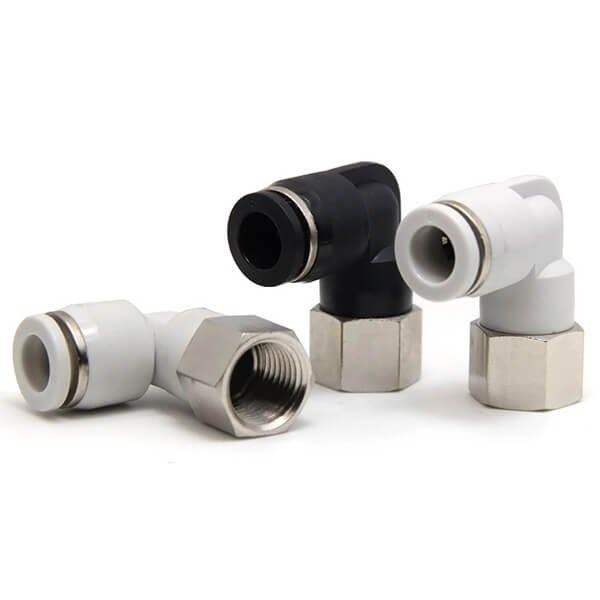

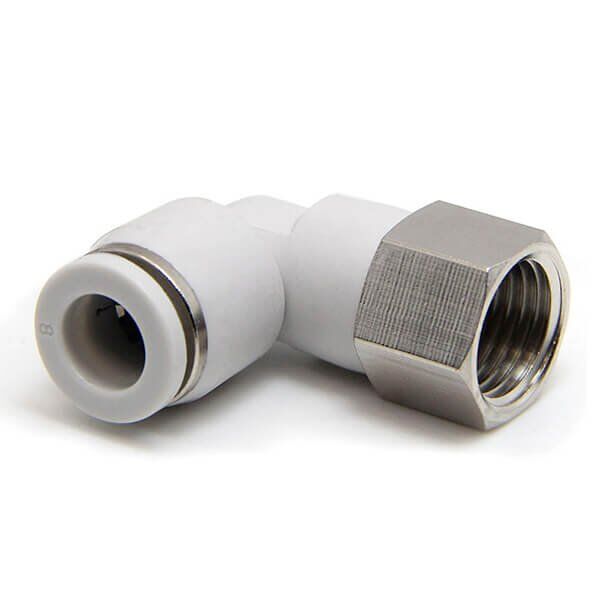

PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings

PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings
PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings - Image 2
PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings - Image 3
PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings - Image 4
PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings - Image 5
PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings - Image 6
PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings - Image 7
Category Tags , ,
  • Durable Materials: Made from high-quality PBT, POM, and nickel-plated brass.
  • Strong Grip: Stainless steel tube gripping claw ensures secure connections.
  • Easy Operation: Quick connect and release mechanism simplifies installation and disassembly.
  • 360° Rotation: Allows flexible adjustment of tubing direction.
  • Wide Application: Suitable for various industries and systems.
  • High Pressure Resistance: Can operate under pressures up to 145 psi.
  • Temperature Resilience: Functions efficiently between 32°F and 140°F.
  • Leak-Proof: Effective sealing prevents air and fluid leaks.
  • Corrosion Resistant: Nickel-plated body resists corrosion, enhancing durability.
  • High Circulation: Ensures optimal flow matching the tubing’s inside diameter.

Additional information

Material

Brass Copper, Plastic, Stainless steel
Push-in Tubing O.D

10mm, 12mm, 14mm, 16mm, 4mm, 6mm, 8mm
Thread Size

1/2", 1/4", 1/8", 3/4", 3/8", M5
Working Pressure

0-1.0 Mpa | 0-145 Psi
Working Temperature

0-60°C | 32～140°F
Thread Type

NPT
Color

Black, Silver, White
Applicable

Pipe: PU/ PA/ PE/ PVC
MOQ

10 pcs
Request A Free Quote
Facebook
Twitter
LinkedIn
Pinterest

Product Details:

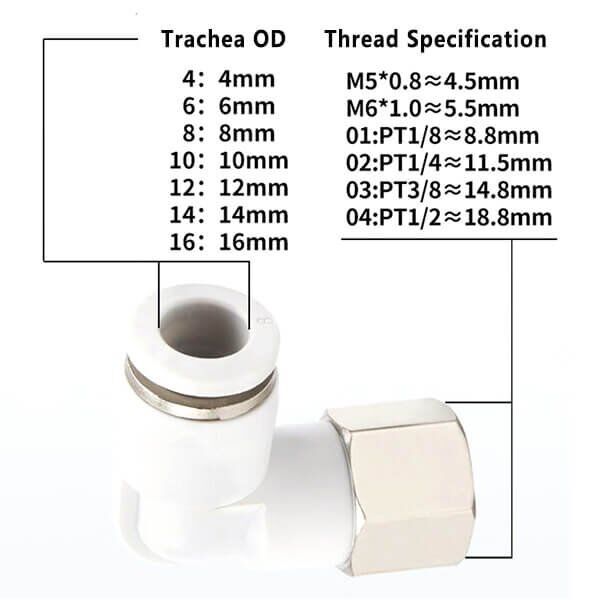

Specification Push-in Tubing O.D Thread Size Thread Type Working Pressure Working Temperature
PLF 4-M5(White) 4mm 5mm NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 4-01(White) 4mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 4-02(White) 4mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-M5(White) 6mm 5mm NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-01(White) 6mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-02(White) 6mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-03(White) 6mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-04(White) 6mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-M5(White) 8mm 5mm NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-01(White) 8mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-02(White) 8mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-03(White) 8mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-04(White) 8mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-01(White) 10mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-02(White) 10mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-03(White) 10mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-04(White) 10mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-01(White) 12mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-02(White) 12mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-03(White) 12mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-04(White) 12mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 14-02(White) 14mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 14-03(White) 14mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 14-04(White) 14mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-02(White) 16mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-03(White) 16mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-04(White) 16mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-06(White) 16mm 3/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 4-M5(Black) 4mm 5mm NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 4-01(Black) 4mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 4-02(Black) 4mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-M5(Black) 6mm 5mm NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-01(Black) 6mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-02(Black) 6mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-03(Black) 6mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 6-04(Black) 6mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-M5(Black) 8mm 5mm NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-01(Black) 8mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-02(Black) 8mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-03(Black) 8mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 8-04(Black) 8mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-01(Black) 10mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-02(Black) 10mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-03(Black) 10mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 10-04(Black) 10mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-01(Black) 12mm 1/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-02(Black) 12mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-03(Black) 12mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 12-04(Black) 12mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 14-02(Black) 14mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 14-03(Black) 14mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 14-04(Black) 14mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-02(Black) 16mm 1/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-03(Black) 16mm 3/8inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-04(Black) 16mm 1/2inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F
PLF 16-06(Black) 16mm 3/4inch NPT 0-1.0mpa | 0-150psi 0-60°C | 32～140°F



EVERPEAK offers high-quality PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings, designed for robust performance in various pneumatic and hydraulic systems. These fittings feature a strong PBT housing, a POM release button, and a zinc alloy ferrule, ensuring durability and a long service life. The thread port, made from nickel-plated brass, provides high pressure and corrosion resistance.

The PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings by EVERPEAK are engineered to deliver reliable and efficient connections in pneumatic systems. Key features include:

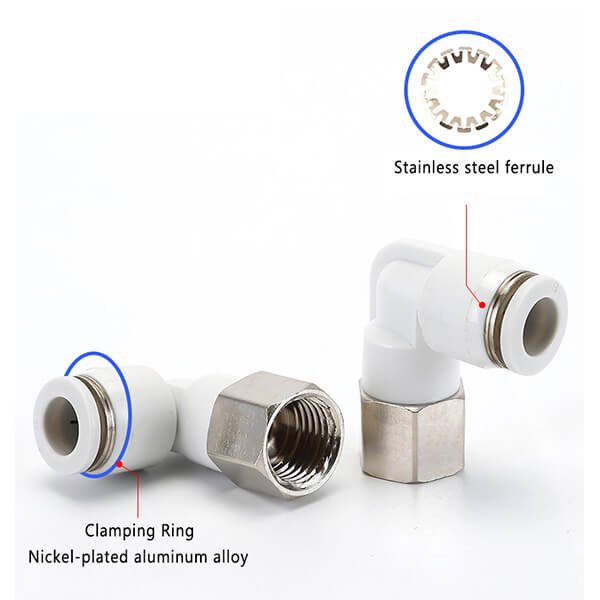

  • Durable Construction: Strong PBT housing, POM release button, and zinc alloy ferrule ensure long-lasting performance.
  • Excellent Sealing Performance: Stainless steel tube gripping claw enhances grip strength, preventing trips or leaks.
  • Easy Installation: Quick connect fittings require just one touch to connect the tube. The elliptical release ring allows convenient disconnection and 360° rotation for easy adjustment.
  • Wide Application: Suitable for low-pressure hydraulic and pneumatic systems, including pneumatic actuators, air compressors, automatic manufacturing operations, aircraft controls, and tire installation. Ideal for industries such as printing, packaging, and textiles.
  • Operating Conditions: Can withstand pressures up to 145 psi and temperatures between 32°F and 140°F.
  • High Circulation Performance: Matches the flow volume of the tubing’s inside diameter, ensuring efficient fluid or air movement.
  • Secure Connection: Threaded portion covered with sealant and attached with a sealing gasket to prevent air leakage.
  • Corrosion Resistance: Nickel-plated body prevents corrosion and pollution, allowing broader application.

EVERPEAK’s PLF Pneumatic Female Elbow NPT Thread 90 Degree Push to Connect Fittings are designed to provide reliable, efficient, and durable connections in diverse pneumatic and hydraulic applications, ensuring high performance and long-lasting service.
