A water shutoff ball valve is a type of valve that uses a rotating ball with a hole (or port) to control the flow of water in pipes. When the valve is open, water flows freely through the hole in the ball. When the valve is closed, the ball rotates to block the hole, stopping the flow of water.
The design of a ball valve makes it a popular choice for water shutoff applications due to its simplicity and effectiveness. The valve is typically operated with a handle that can be turned to open or close the valve, allowing for quick and easy control over water flow.
Unlike other valve types, such as gate or globe valves, the ball valve provides a clean and reliable shutoff, which is especially important in critical systems like water filtration.
Function and Purpose of a Water Shutoff Ball Valve
Primary Function: Controlling Water Flow
The main purpose of a water shutoff ball valve is to control the flow of water within a piping system. This is achieved by rotating the ball inside the valve, which either allows or blocks water from passing through. When open, the ball valve enables a smooth and unrestricted flow of water; when closed, it completely stops the water.
Emergency Shutoff and Maintenance
A ball valve also plays a crucial role in emergency shutoff situations. If there’s a water leak, pipe burst, or maintenance needs to be done on a water filter or softener, the valve provides an easy way to stop the water flow quickly and effectively.
In water filtration systems, having a ball valve installed allows for easy isolation of the system without affecting the rest of the household water supply. This feature is incredibly useful for filter replacement or routine maintenance.
How a Water Shutoff Ball Valve Works
A water shutoff ball valve operates through a simple yet effective mechanism. The ball valve has a hollow ball inside it that rotates when the handle is turned. Here’s how it works:
Open Position
When the ball valve handle is turned to the open position, the hole in the ball aligns with the pipe, allowing water to flow through the valve freely. The water moves through the hole in the ball and continues through the piping system.
Closed Position
When the handle is turned to the closed position, the ball rotates, and the hole is no longer aligned with the pipe. This blocks the water from passing through the valve, effectively shutting off the flow.
The design of the ball valve allows it to be operated with minimal effort, providing a smooth and consistent shutoff mechanism. Because the ball inside the valve is spherical, it creates a tight seal when closed, preventing any leaks or drips.
Common Applications of Water Shutoff Ball Valves
Water shutoff ball valves are versatile components and are used in various plumbing systems to control water flow. Here are some of the most common applications:
Residential Plumbing
In homes, water shutoff ball valves are commonly used for isolating sections of the water system for maintenance or repairs. For instance, they are often installed on the main water supply line or near appliances like water heaters, dishwashers, and washing machines. This allows homeowners to stop water flow quickly if there’s a leak or if servicing is required.
Water Filtration Systems
One of the most important uses of a water shutoff ball valve is in water filtration systems. A ball valve is used to control the water flow to and from filters, reverse osmosis units, or water softeners. By shutting off the flow, you can easily replace filters, perform maintenance, or disconnect the system for cleaning without disrupting the entire household water supply.
Commercial and Industrial Settings
In commercial buildings and industrial applications, water shutoff ball valves are used to manage the water flow in large-scale plumbing systems. They are commonly found in factories, offices, and restaurants where water flow needs to be controlled quickly and efficiently.
Irrigation Systems
In agricultural settings, ball valves are also used to regulate water flow in irrigation systems. They allow farmers to control the supply of water to fields, ensuring efficient water use for crops.
Types of Water Shutoff Ball Valves
Water shutoff ball valves come in different types, each suited for specific applications and needs. Understanding the types of ball valves can help you choose the right one for your system.
Full Port Ball Valve
A full port ball valve is designed with a larger hole that matches the pipe’s diameter, allowing for maximum water flow. This type of valve is ideal when you need to ensure unrestricted flow in systems that require high water volume, such as in industrial applications or irrigation systems.
Standard Port Ball Valve
A standard port ball valve has a smaller hole compared to the full port version. While it restricts the flow somewhat, it is sufficient for most residential and commercial applications. This valve is often more cost-effective and suitable for standard plumbing systems.
V-Port Ball Valve
A V-port ball valve features a “V” shaped opening in the ball, which provides more precise flow control. This type of valve is commonly used in systems where flow regulation is necessary, such as in water filtration or chemical processing systems.
Floating Ball Valve
In a floating ball valve, the ball is not fixed to the valve stem. Instead, it “floats” and is pushed against the valve seat by the pressure of the water. This type of valve is commonly used in smaller systems where ease of operation and a secure seal are important.
Trunnion Ball Valve
A trunnion ball valve has a ball that is fixed to the valve body with additional support. This type of valve is used in high-pressure systems where greater stability is required. They are commonly found in large-scale industrial systems.

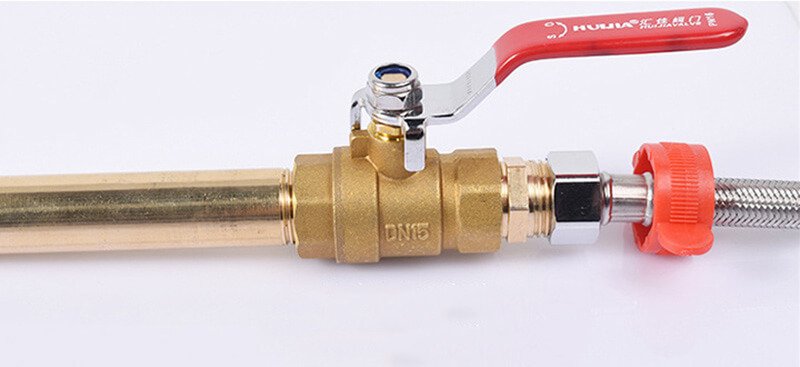

Installing a Water Shutoff Ball Valve
Installing a water shutoff ball valve is a straightforward process, but it requires attention to detail to ensure proper functionality and avoid leaks. Here’s a step-by-step guide to help you install one:
Tools You’ll Need
- Pipe wrench
- Teflon tape (or pipe joint compound)
- Screwdriver (for some valves)
- Hacksaw or pipe cutter (if cutting pipe is necessary)
Step 1: Turn Off the Water Supply
Before beginning the installation, make sure to turn off the main water supply to your home or building to prevent any accidental water flow during installation.
Step 2: Cut the Pipe
If necessary, use a pipe cutter or hacksaw to cut the section of pipe where the valve will be installed. Make sure the cut is clean and smooth for a proper seal.
Step 3: Prepare the Valve
Apply Teflon tape to the threads of the ball valve, which will help create a water-tight seal. If you’re using a pipe joint compound, apply it evenly to the threads.
Step 4: Install the Valve
Screw the ball valve onto the pipe. Use a pipe wrench to tighten the valve securely, but avoid over-tightening, as this could cause damage to the valve or pipe.
Step 5: Test the Installation
Once the valve is installed, turn the water supply back on and check for any leaks around the valve. If everything is secure, you can operate the valve to ensure it opens and closes smoothly.
Step 6: Final Adjustments
Make any final adjustments, such as ensuring the valve handle is easily accessible and turns freely. If the valve is part of a larger system, make sure the water flow is as expected.
Maintaining a Water Shutoff Ball Valve
Maintaining a water shutoff ball valve is essential to ensure it works efficiently for years. Regular maintenance can prevent problems such as leaks, stiff operation, or rust.
Regular Inspections
Inspect the valve regularly to check for any signs of wear or corrosion. Look for leaks around the valve body or handle, and check if the valve operates smoothly. Regular checks help catch potential issues early before they become major problems.
Lubricating the Valve
Occasionally, you may need to lubricate the valve handle to ensure it turns smoothly. Use a silicone-based lubricant that is safe for plumbing systems. Avoid using petroleum-based lubricants as they can damage rubber seals.
Keeping the Valve Clean
Dirt and debris can accumulate around the valve, causing it to malfunction. Keep the valve clean by wiping it down with a cloth to remove dirt and grime. For tougher buildup, use a mild cleaner and ensure the valve is dry before reusing it.
Tightening Connections
Over time, the connections on the valve may loosen. Tighten the connections regularly to ensure there are no leaks and the valve is properly sealed. However, avoid overtightening, as this can damage the valve or pipe.
Troubleshooting Common Issues
Even though water shutoff ball valves are generally durable and reliable, they can sometimes develop issues. Here are some common problems and solutions:
1. Leaking Around the Valve
If you notice water leakage around the valve, it may be caused by a worn-out seal or improper installation. Tighten the connections and check the valve seals for any damage. If necessary, replace the seal or re-install the valve.
2. Stiff or Hard-to-Turn Handle
A stiff valve handle can be caused by mineral buildup, rust, or lack of lubrication. Try cleaning the valve and applying lubricant to the handle. If the problem persists, the valve may need replacement.
3. Water Still Leaks When Closed
If the valve is in the closed position, but water is still flowing, it could mean the ball inside the valve is damaged or the valve is not fully closing. In this case, you may need to replace the valve entirely to restore proper function.
4. Noisy Valve Operation
If the valve makes a hissing or whistling sound during operation, this may indicate that water is flowing through it under pressure. Check for water hammer issues or inspect for blockages in the pipes leading to and from the valve.
Advantages of Using a Water Shutoff Ball Valve
There are several reasons why water shutoff ball valves are preferred in plumbing systems. Below are some of the key advantages:
Reliability
Ball valves are known for their reliability and longevity. They offer a tight seal when closed, reducing the chances of leaks compared to other types of valves.
Ease of Use
One of the biggest advantages of ball valves is how easy they are to operate. A simple quarter-turn of the handle opens or closes the valve quickly and efficiently, making them user-friendly even for those who are not familiar with plumbing systems.
Low Maintenance
Compared to other valve types, ball valves require minimal maintenance. With regular inspections and lubrication, a ball valve can last for many years without significant wear.
Versatility
Water shutoff ball valves are versatile and can be used in various applications, from residential plumbing to industrial systems. Their adaptability makes them a popular choice in different industries.
Durability
Ball valves are made from sturdy materials like stainless steel, making them highly durable and resistant to wear, corrosion, and high-pressure systems. This durability ensures that they can handle harsh conditions, which is especially important in water filtration systems and industrial applications.
Conclusion
In conclusion, a water shutoff ball valve is an essential component of plumbing systems, particularly in water filtration setups. It offers reliable control over water flow, provides ease of use, and ensures minimal maintenance. Whether you’re installing a new system, maintaining an existing one, or troubleshooting common issues, understanding how these valves work and how to care for them can help you keep your plumbing running smoothly.
By regularly inspecting your valve, troubleshooting any problems promptly, and appreciating its advantages, you can ensure that your water shutoff ball valve performs optimally for years to come.
