Pneumatic systems are essential in a variety of industries, from manufacturing to automation, and they rely heavily on fittings and connectors to ensure proper functionality. One crucial element in these systems is the thread type used in the fittings. The thread types of pneumatic fittings directly impact how well the components fit together, ensuring tight seals, preventing leaks, and maintaining system pressure.
Choosing the correct thread type is key to achieving a secure and reliable connection. Without the right threads, even the best pneumatic equipment can experience inefficiencies, leaks, and failures. This article will explore the different thread types used in pneumatic fittings, their characteristics, and how to choose the right one for your system.
Thread Types in Pneumatic Fittings
When it comes to pneumatic systems, the thread type refers to the shape, size, and angle of the threads on the fitting. These threads allow components such as pipes, hoses, and connectors to be joined securely. Thread types are critical because they ensure that fittings can be tightened to prevent air leakage and maintain system performance.
Why Thread Types Matter
Each thread type serves a specific purpose, and the correct one depends on several factors, including the application, the materials used, and the pressure requirements. In simple terms, the right threads make sure that components fit tightly and seal properly to avoid any potential failures in the pneumatic system.
How Thread Types Affect Performance
The main job of the thread is to provide a mechanical bond between two components. The way the threads are designed (such as tapered or parallel) influences how well the components connect and seal. For example, tapered threads form a seal as they tighten, while parallel threads rely on an additional sealing mechanism (such as a washer or O-ring).
Common Thread Types in Pneumatic Fittings
In pneumatic systems, there are several thread types commonly used for fittings. Each thread type is designed for specific applications, and understanding them will help you choose the right one for your system. Below are the most widely used thread types in pneumatic fittings.
NPT (National Pipe Thread)
NPT is one of the most common thread types in the United States and is often used for tapered pipe fittings. These threads are designed with a taper, meaning they get tighter as they are screwed together, helping to create a secure seal.
- Characteristics: Tapered, with a 60° thread angle.
- Applications: Common in industrial and commercial settings in North America.
- Advantages: Offers a self-sealing connection when tightened properly, ideal for high-pressure systems.
BSPT (British Standard Pipe Tapered)
The BSPT thread is similar to NPT but follows the British Standard. It’s commonly used in Europe and other regions outside the United States. Like NPT, BSPT is a tapered thread designed to create a tight seal as the fitting is tightened.
- Characteristics: Tapered, with a 55° thread angle.
- Applications: Frequently found in European industrial systems.
- Advantages: Provides a reliable seal and is often used in systems with moderate to high pressure.
BSPP (British Standard Pipe Parallel)
Unlike BSPT, BSPP threads are parallel, meaning the threads do not taper. Instead, these threads rely on an additional sealing method (such as a washer or O-ring) to prevent leaks. BSPP is often used in applications where an additional seal is necessary.
- Characteristics: Parallel threads, requires a separate sealing mechanism.
- Applications: Common in low to medium-pressure systems, often used in hydraulic and pneumatic applications.
- Advantages: Easy to assemble and disassemble, making it ideal for applications that require frequent maintenance or replacement.
Metric Threads
Metric threads are commonly used in European and international pneumatic systems. These threads follow the metric system for sizing, and are typically used in systems that require a precise and standardized fitting.
- Characteristics: Parallel or tapered, with sizes defined by the metric system.
- Applications: Frequently found in European, Asian, and global systems.
- Advantages: Standardized and commonly available in various sizes and pressure ratings.
How to Choose the Right Thread Type for Your Pneumatic System
Choosing the correct thread type for your pneumatic system is crucial to ensure proper functionality, safety, and efficiency. Here are a few factors to consider when making your decision:
1. System Requirements
First, identify the pressure ratings and the type of environment your pneumatic system will operate in. For high-pressure systems, NPT or BSPT threads are typically the best choice as they create a tight, leak-proof seal. For lower pressure systems, BSPP or Metric threads may be more suitable.
2. Material Compatibility
The materials of your components and fittings should also be taken into account. Corrosive environments may require stainless steel or other durable materials to ensure thread integrity. Be sure to check the thread type compatibility with the material of your system.
3. Thread Size and Connection Type
Next, consider the size of the threads needed for your components. Proper thread sizing ensures a secure connection and prevents leaks. Also, evaluate the type of connection your system requires, as tapered or parallel threads may affect how the connection is sealed.
4. Location and Standards
Finally, consider regional standards. For example, if you are operating in North America, NPT is commonly used, while BSPT and BSPP are more common in Europe. Understanding these regional standards helps avoid issues with compatibility when sourcing components.
5. Differences Between Tapered and Parallel Threads
Understanding the difference between tapered and parallel threads is key when selecting the right fittings for your system.
Tapered Threads
- Shape: Tapered threads, such as NPT and BSPT, gradually get narrower as they go down the fitting.
- Sealing: These threads form a self-sealing connection as they are tightened, making them ideal for high-pressure applications.
- Common Uses: Typically used in systems where a strong seal is essential.
Parallel Threads
- Shape: Parallel threads, like BSPP and Metric, have threads that run in a straight line without narrowing.
- Sealing: These threads rely on a sealing mechanism like an O-ring or gasket to create a leak-proof connection.
- Common Uses: Used in systems where an additional sealing method is preferred, often for medium-pressure or low-pressure applications.

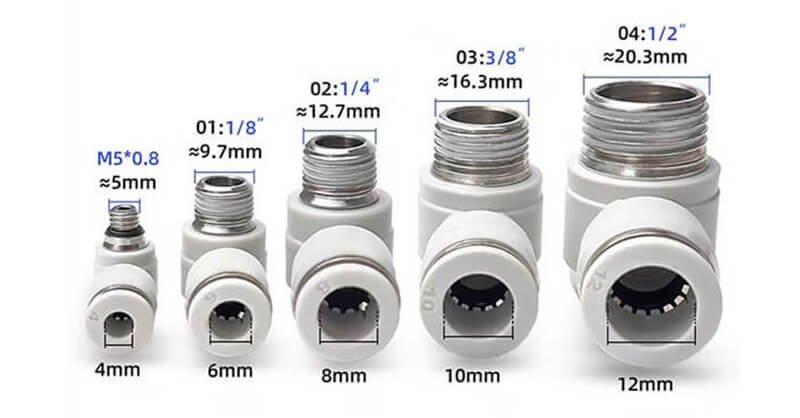

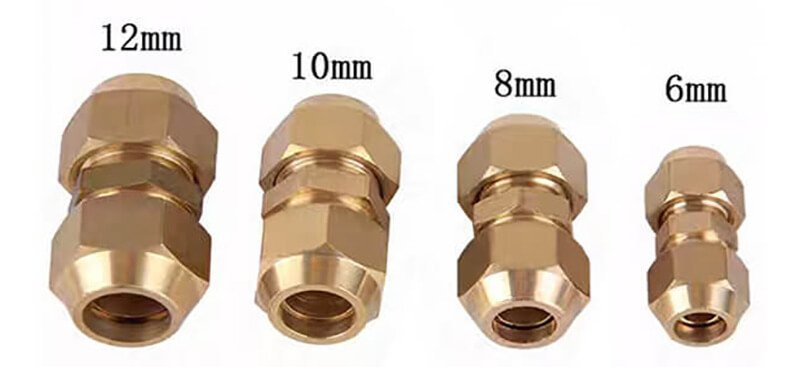

Thread Size Considerations
Choosing the right thread size is crucial for achieving a secure, leak-free connection. Here are the key things to consider:
1. Thread Diameter
The diameter of the threads is an important factor when selecting the right fitting. It should match the size of the components you’re connecting, as even slight mismatches can cause leaks or improper connections.
2. Thread Pitch
The pitch refers to the distance between each thread. The correct pitch ensures that the threads mesh properly for a secure fit. Different thread types (e.g., NPT vs. Metric) have different pitch measurements, so always ensure compatibility.
3. Matching Thread Standards
Be sure that the thread size is in line with the standards used in your region or industry. For example, NPT threads will have different sizes compared to BSPT or Metric threads.
Common Issues with Threads in Pneumatic Fittings
Even with the right threads, there are still some common issues that can arise in pneumatic systems:
1. Thread Damage
Over-tightening or improper handling can cause damage to the threads, which may result in leaks or difficulty in connecting components. Always ensure that you are using the correct tools and methods for tightening.
2. Leaks
Leaking can occur if the threads are not properly sealed. This is particularly true for parallel threads that require an additional sealing method. Ensure that all necessary sealing components (like O-rings or washers) are used to create a tight seal.
3. Mismatched Thread Types
Using incompatible thread types or sizes can lead to poor connections or even system failure. Always double-check that the fittings and threads are compatible with each other and your system.
4. Corrosion
In corrosive environments, threads can wear down or corrode over time, compromising the seal and functionality of the pneumatic system. Corrosion-resistant materials, such as stainless steel, can help mitigate this issue.
Conclusion
Choosing the right thread type is a critical decision in ensuring the performance and longevity of your pneumatic system. By understanding the different thread types, sizes, and how they affect your system, you can make more informed decisions when selecting fittings.
Whether you’re dealing with tapered or parallel threads, or need to consider material compatibility or size for your specific application, making the right choice will help ensure that your pneumatic system operates smoothly and efficiently.
